Cold Storage Insulated Sectional Overhead Door SUS304 Steel Panel Beaufort 11 Wind Resistant EPDM Sealing System
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | DESEO |
| प्रमाणन: | CE/ISO9001:2008 |
| मॉडल संख्या: | एसडी5300 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 इकाई |
|---|---|
| मूल्य: | USD 900-1500/UNIT |
| पैकेजिंग विवरण: | नमी अवरोधक के साथ प्लाईवुड पैकेज |
| प्रसव के समय: | 15-30 दिन |
| भुगतान शर्तें: | टी/टी, एल/सी |
| आपूर्ति की क्षमता: | 150 यूनिट प्रति माह |
|
विस्तार जानकारी |
|||
| सामग्री: | SUS304 स्टेनलेस स्टील, एल्यूमीनियम मिश्र धातु | पैनल की मोटाई: | 50 मिमी |
|---|---|---|---|
| पैनल की चौड़ाई: | 500 मिमी | मूल सामग्री: | पॉलीयुरेथेन फोम 48 किग्रा/एम3 |
| सीलिंग प्रणाली: | ईपीडीएम रबर ऑल-राउंड सीलिंग | पवन प्रतिरोध: | ब्यूफोर्ट स्केल 11, 28 मी/से |
| ऊष्मा परिरक्षण: | 4.5W/mh | संचालन: | इलेक्ट्रिक, रिमोट, मैनुअल |
| ध्वनि इंसुलेशन: | 26 डीबी | अग्निशमन: | एक कक्षा |
| सेवा जीवन: | 10 वर्ष | अधिकतम आयाम: | 12मी x 8मी |
| सतह का उपचार: | पावर कोटिंग 30um | गाइड रेल: | 2 मिमी गैल्वनाइज्ड स्टील |
| आवेदन: | कोल्ड स्टोरेज, गोदाम, फैक्टरी, खाद्य प्रसंस्करण | ||
| प्रमुखता देना: | Cold storage insulated sectional door,SUS304 steel panel overhead door,Wind resistant EPDM sealing door |
||
उत्पाद विवरण

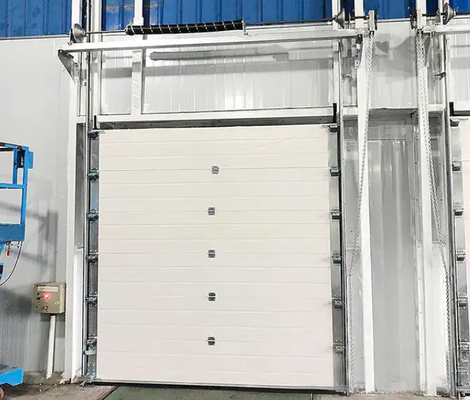

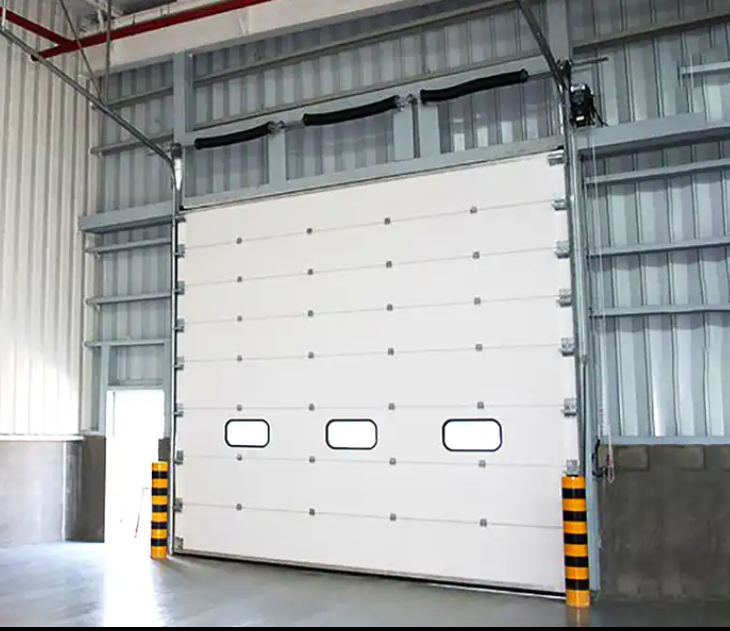

Cold Storage Insulated Sectional Overhead Door
The SD5300 cold storage sectional overhead door is purpose-built for temperature-controlled environments. Constructed with SUS304 stainless steel panels and a comprehensive EPDM sealing system, it maintains thermal integrity in freezer rooms, cold chain logistics centers, and food processing facilities.
Key Features
- SUS304 Stainless Steel Construction: Superior corrosion resistance and hygiene compliance, ideal for food-grade and pharmaceutical cold storage environments.
- EPDM All-Round Sealing: Complete perimeter sealing on both sides, top, bottom, and between door panels eliminates thermal bridging and prevents condensation.
- Beaufort 11 Wind Resistance (28m/s): Engineered for external installations in coastal and high-wind regions.
- 50mm Thick Insulated Panels: Enhanced thermal barrier minimizes cold loss and energy consumption in sub-zero environments.
- Class A Fire Retardation: Compulsory safety certification for cold storage and industrial facilities.
Technical Specifications
| Material | SUS304 Stainless Steel, Aluminum Alloy |
| Panel Thickness | 50mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| Sealing System | EPDM Rubber All-Round (Top, Bottom, Sides, Panel Joints) |
| Guide Rail | 2mm Hot-Dip Galvanized Steel |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort Scale 11, 28m/s |
| Sound Insulation | 26 dB |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Opening Speed | 0.2-0.3m/s |
| Service Life | 10 years / 100,000 cycles |
| Balance System | Torsion Spring with Anti-Break Device |
Cold Storage Optimizations
- Rust-proof SUS304 panels suitable for high-humidity cold environments
- Optional heated guide rail system for sub-zero operation
- Rapid open/close to minimize cold air loss
- Finger-protection safety design on all panel joints
- Emergency manual chain hoist for power-off scenarios
Applications
Designed for cold storage warehouses, frozen food distribution centers, pharmaceutical cold chains, food processing plants, and any industrial facility requiring reliable thermal isolation in harsh weather conditions.
